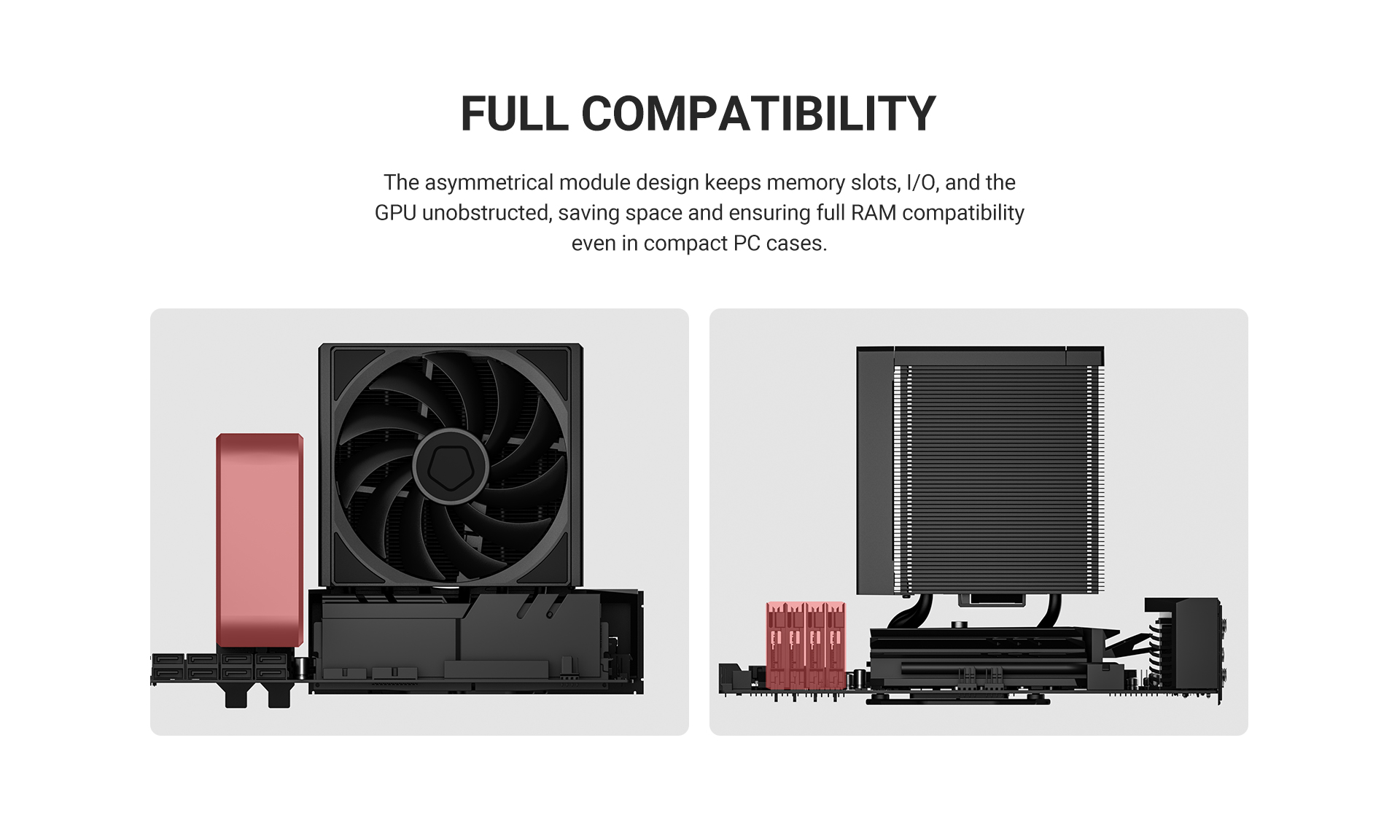

Compatibility |
Intel LGA1954/1851/1700/1200/1151/1150/1155/1156 AMD AM5/AM4 |
|
|
TDP |
260W |
|
|
Overall Dimension |
133×122×160mm (L×W×H) |
|
|

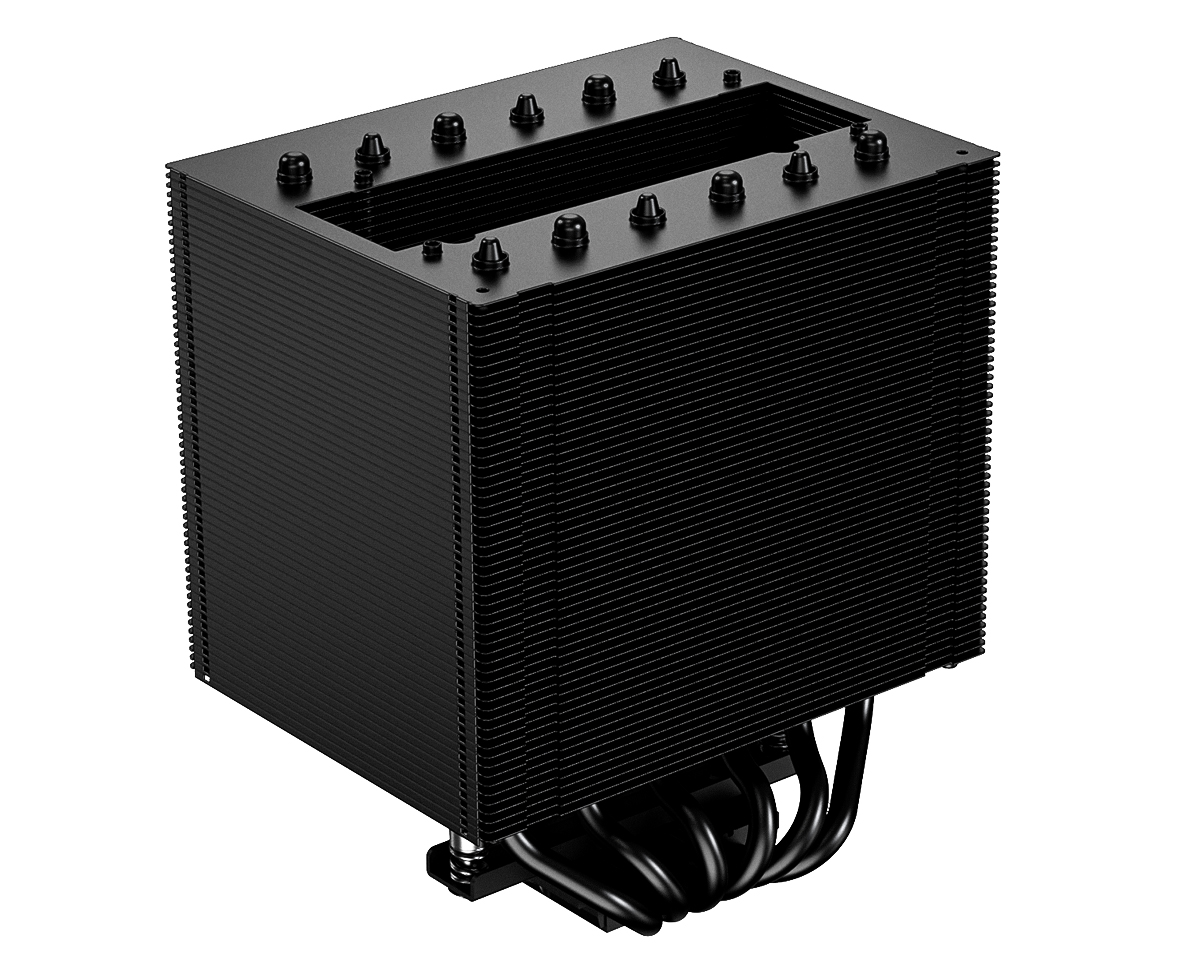

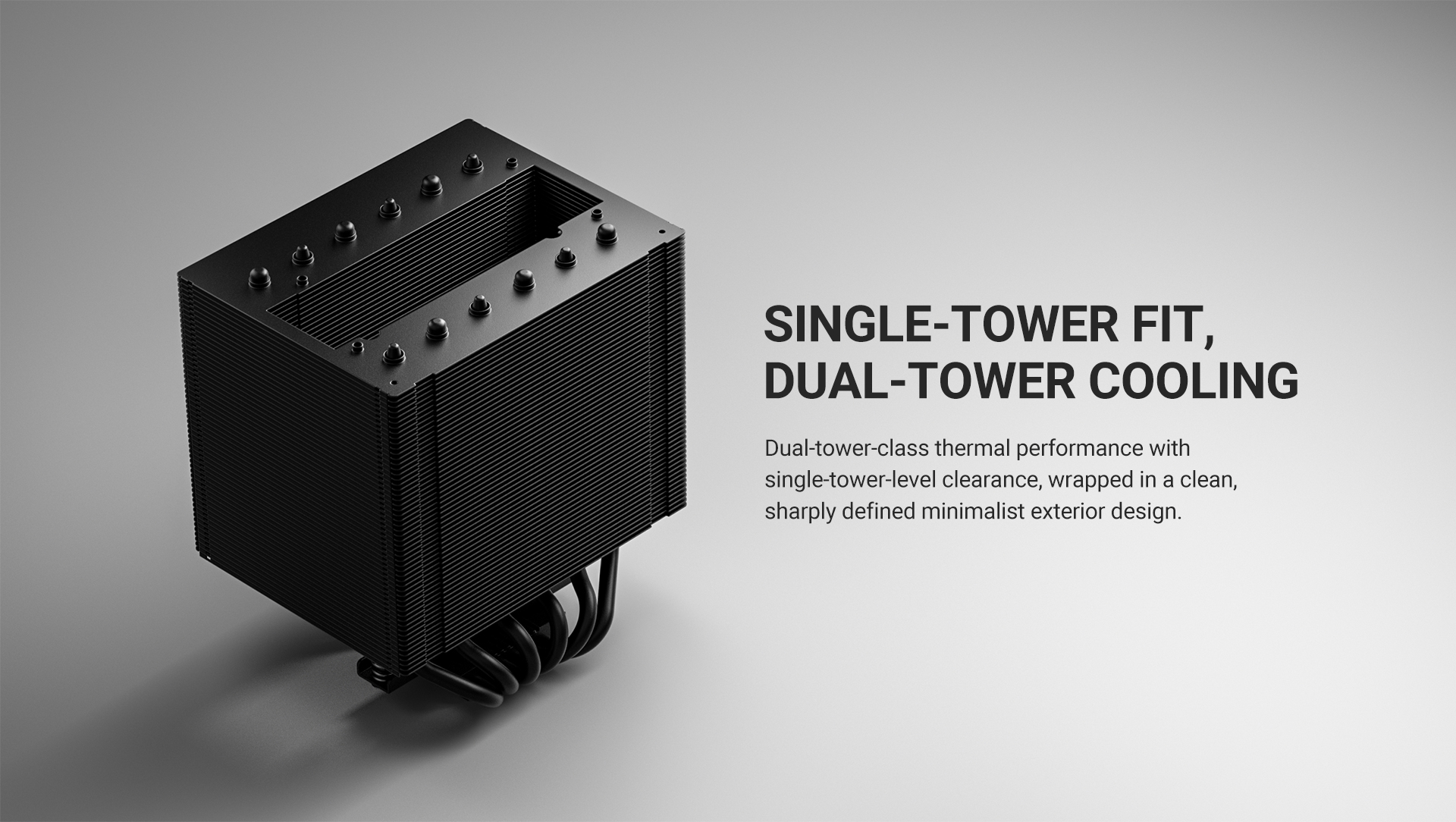

Heatsink Material |

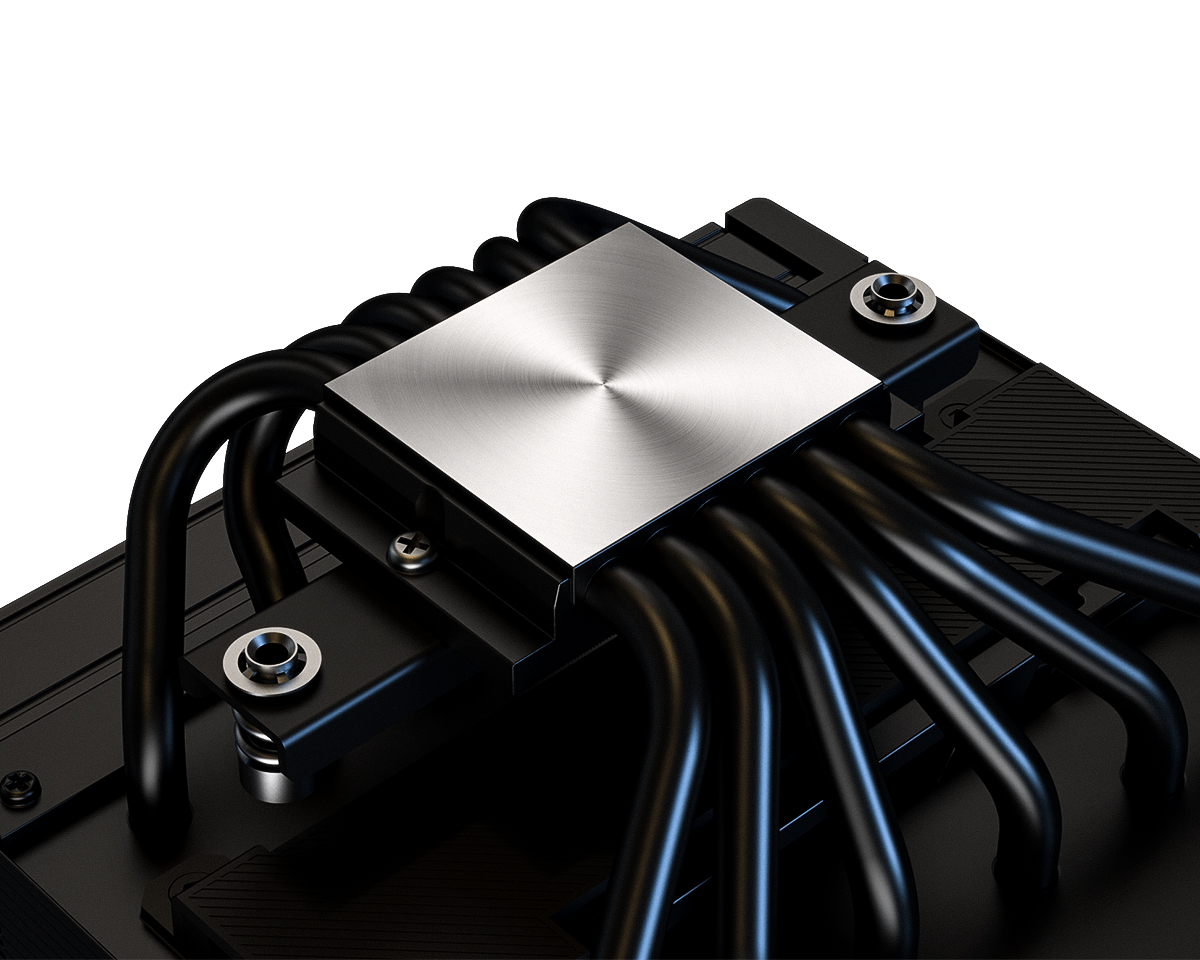

6×Ф6mm Heatpipe + Copper Base + Aluminum Fin |
|
|
Weight |
1300g (heatsink+fan) |
|
|
|

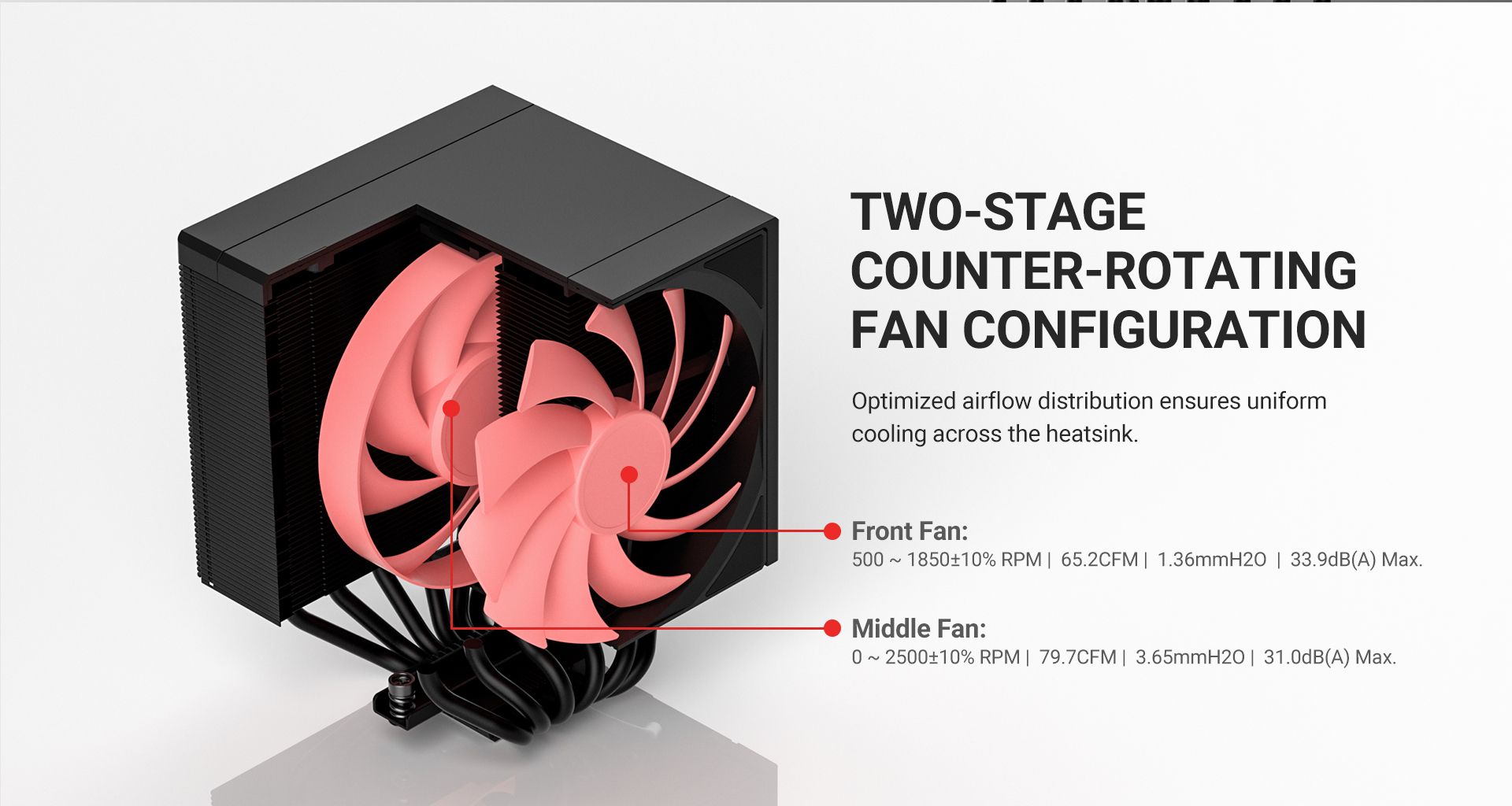

Front Fan |
Middle Fan |
|
Fan Model |
AF-120 SLIM |
AM-120-K |
|
Fan Dimension |
120×120×15mm |
120×120×25mm |
|
Fan Speed |
500 ~ 1850±10% RPM |
0 ~ 2500±10% RPM |
|
Max. Air Flow |
65.2CFM |
79.7CFM |
|
Max. Static Pressure |
1.36mmH2O |
3.65mmH2O |
|
Noise |
33.9dB(A) Max. |
31.0dB(A) Max. |
|
Rated Voltage |
12VDC |
12VDC |
|
Operating Voltage |
10.8 ～ 13.2VDC |
10.8 ～ 13.2VDC |
|
Started Voltage |
7VDC |
7VDC |
|
Rated Current |
0.28A |
0.25A(0.3A Max.) |
|
Power Input |
3.36W |
3.6W Max. |
|
Bearing Type |
Hydraulic Bearing |
Hydraulic Bearing |
|
Connector |
4Pin PWM |
4Pin PWM |
|
EAN |
6931393308678 |
|
