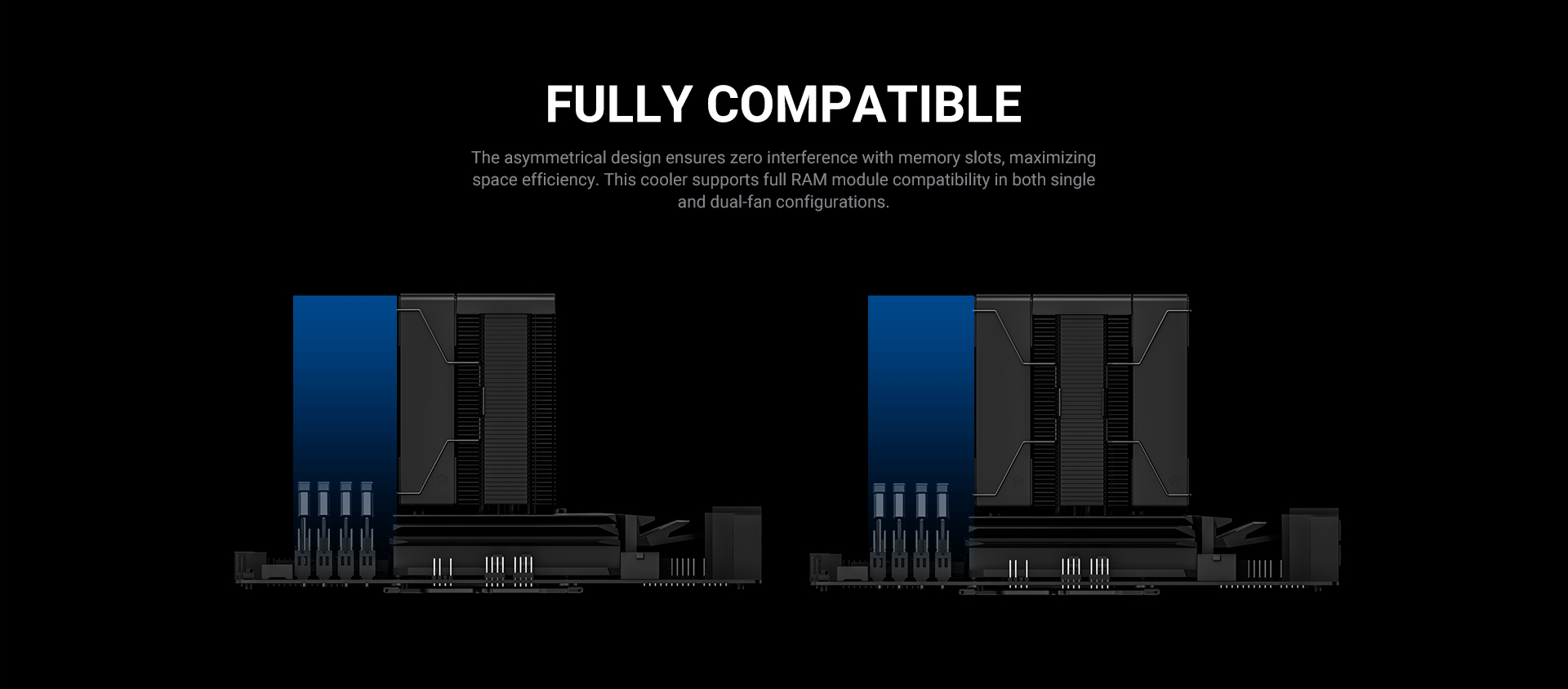

Compatibility |
Intel LGA1851/1700/1200/115X AMD AM5/AM4 |
|

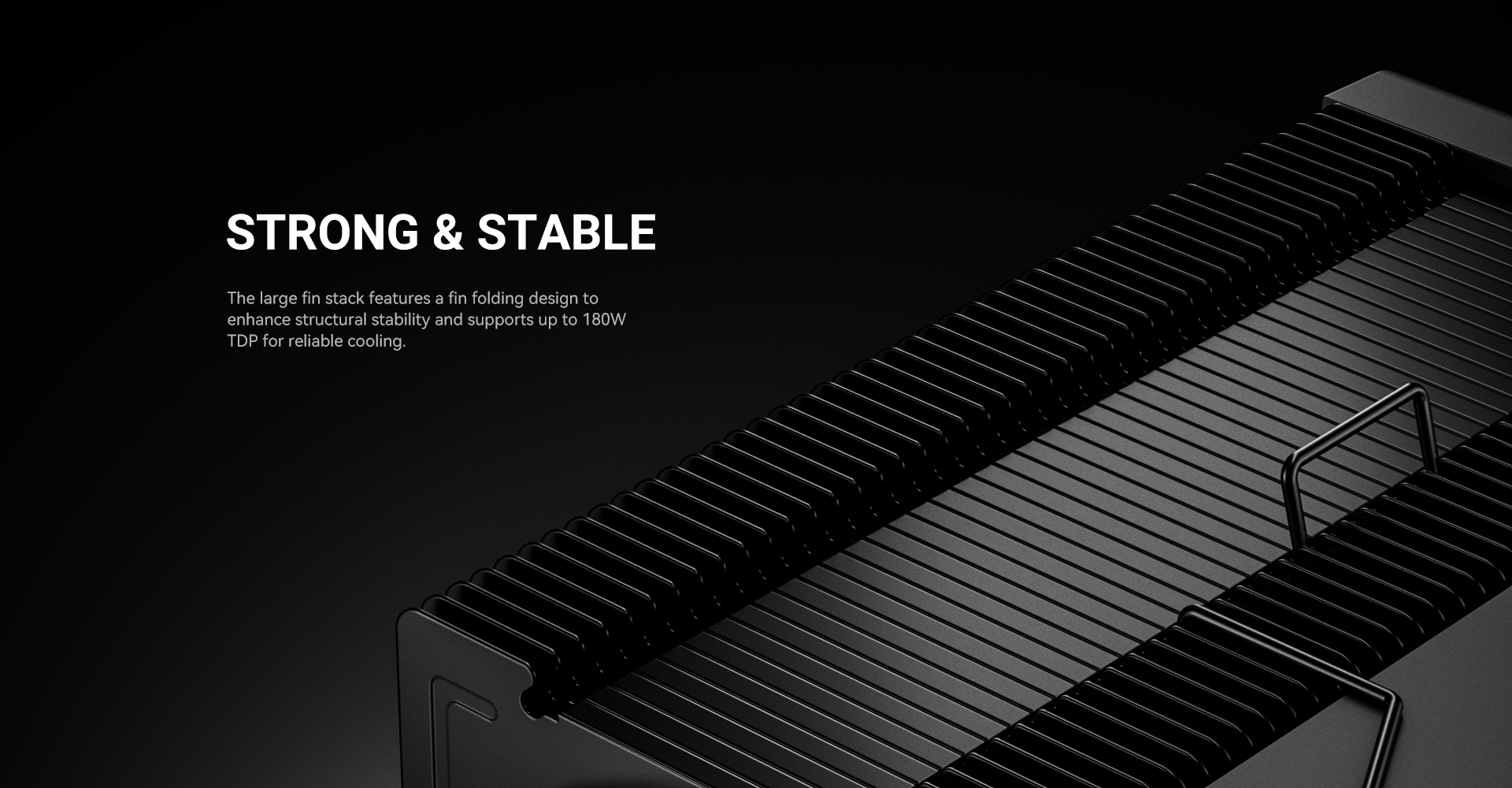

TDP |
180W |
|
Overall Dimension |
105×73×123mm (L×W×H) |
|

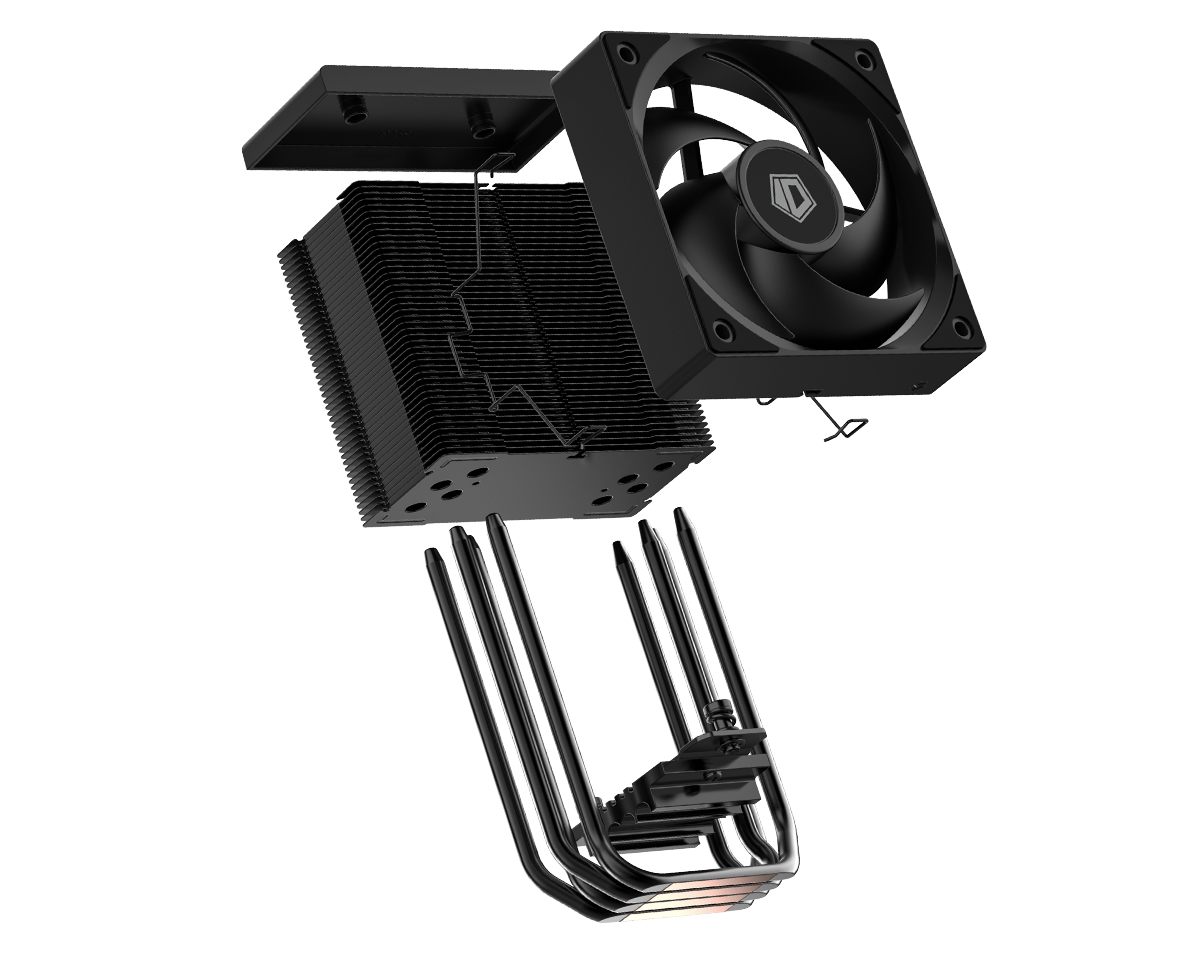

Heatsink Material |

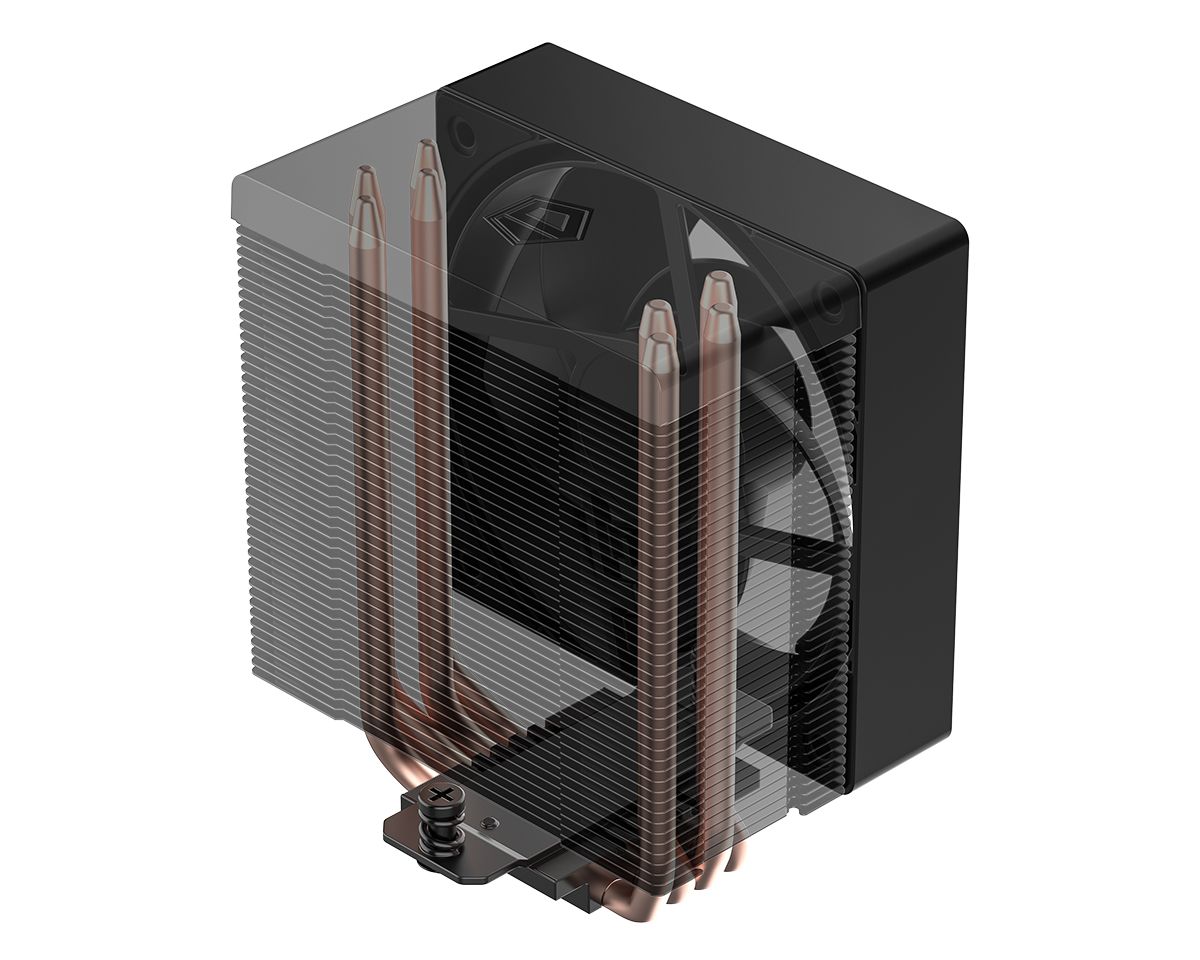

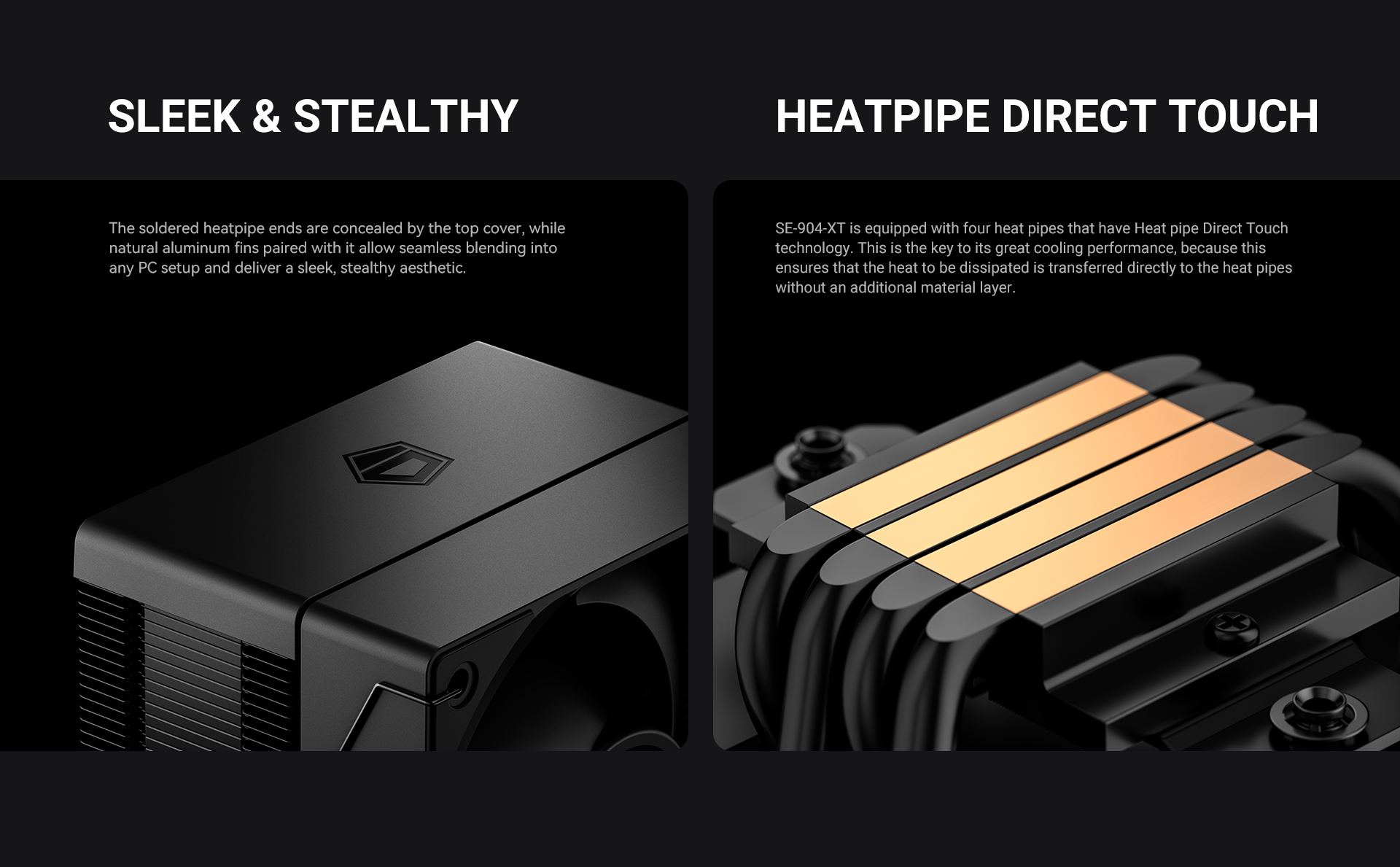

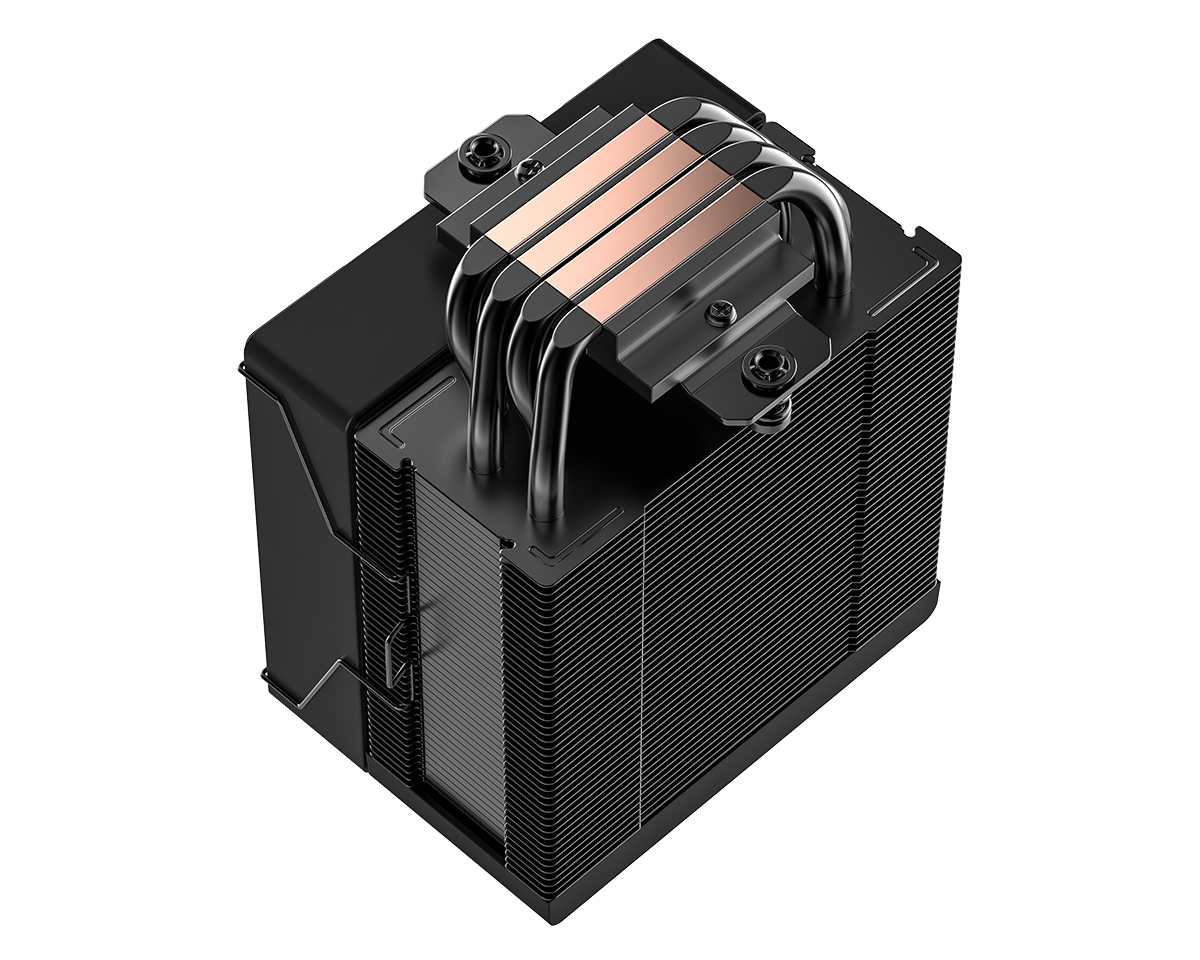

4×Ф6mm Heatpipe (Direct Touch) + Aluminum Fin |
|
Weight |
430g (heatsink+fan) |
|

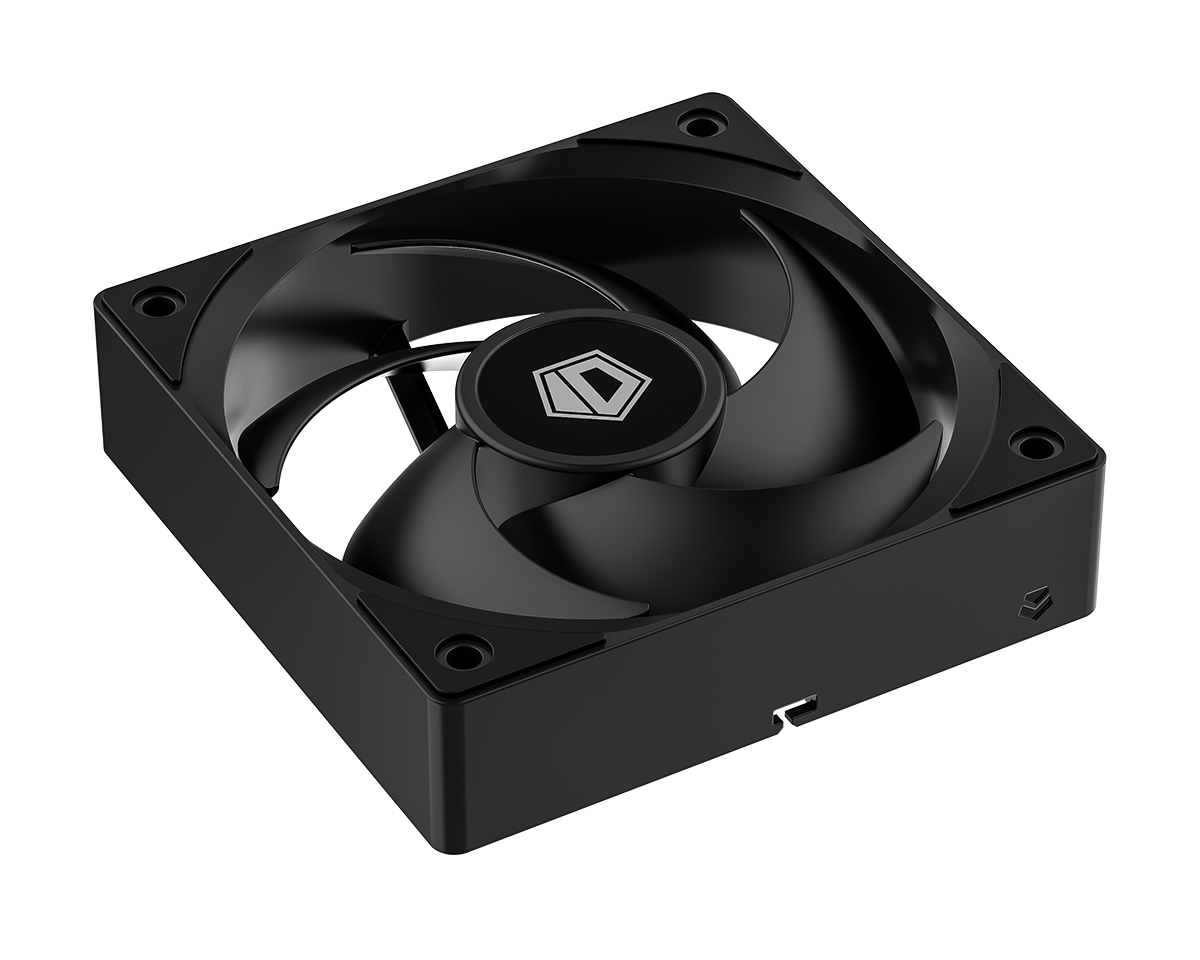

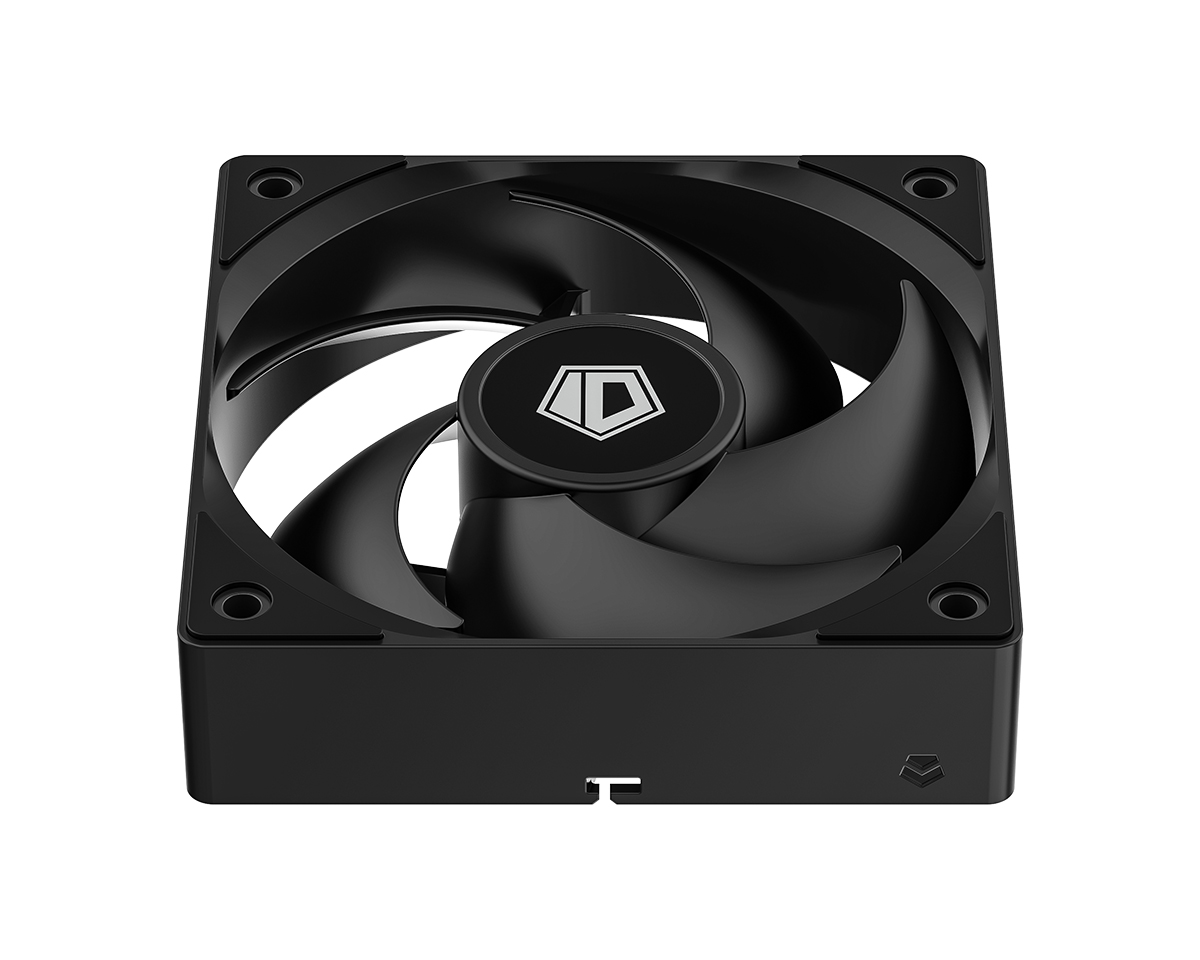

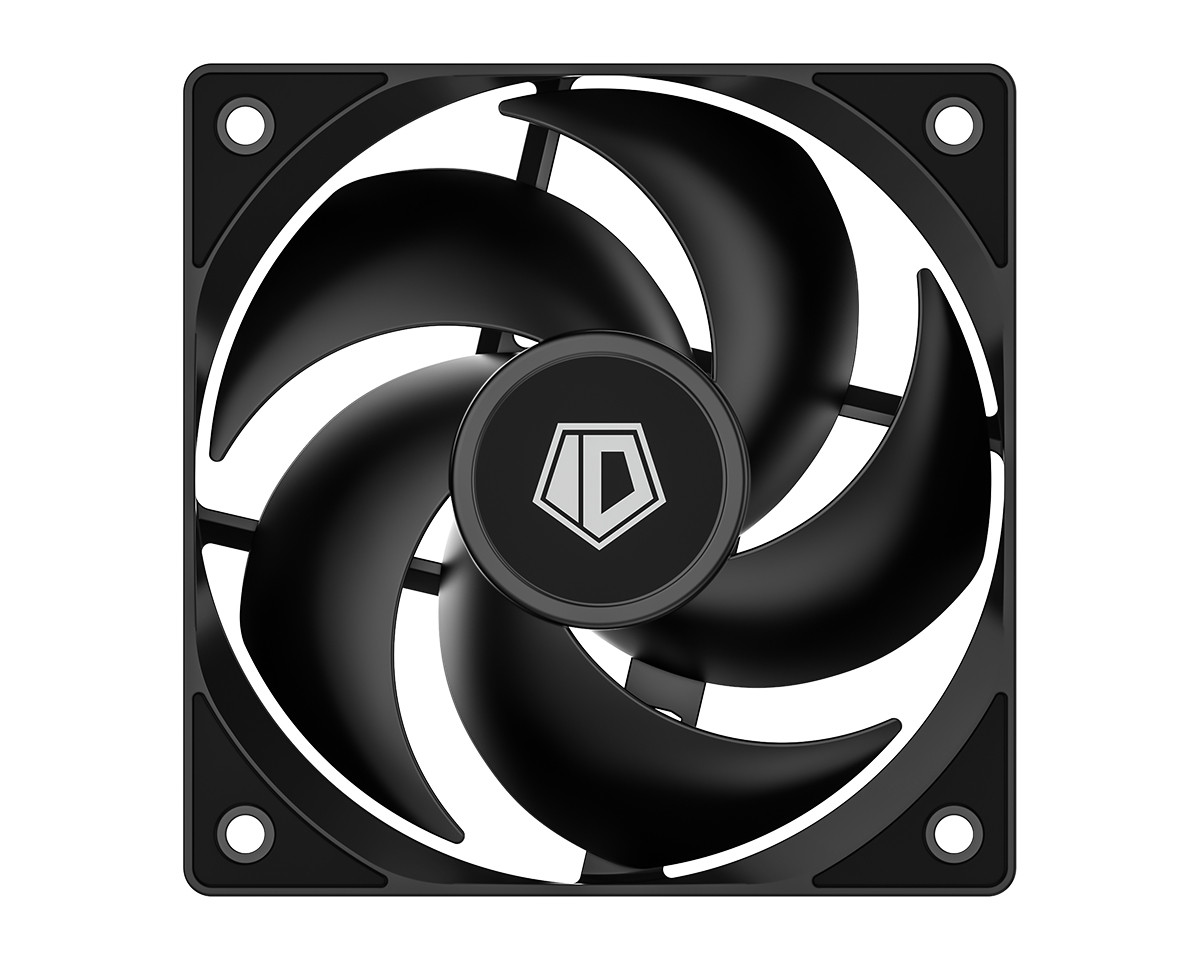

Fan Model |
AS-10025 V2 |
|
Fan Dimension |
100×100×25mm |
|
Fan Speed |
500 ~ 2500±10% RPM |
|
Max. Air Flow |
47.1CFM |
|
Max. Static Pressure |
1.94mmH2O |
|

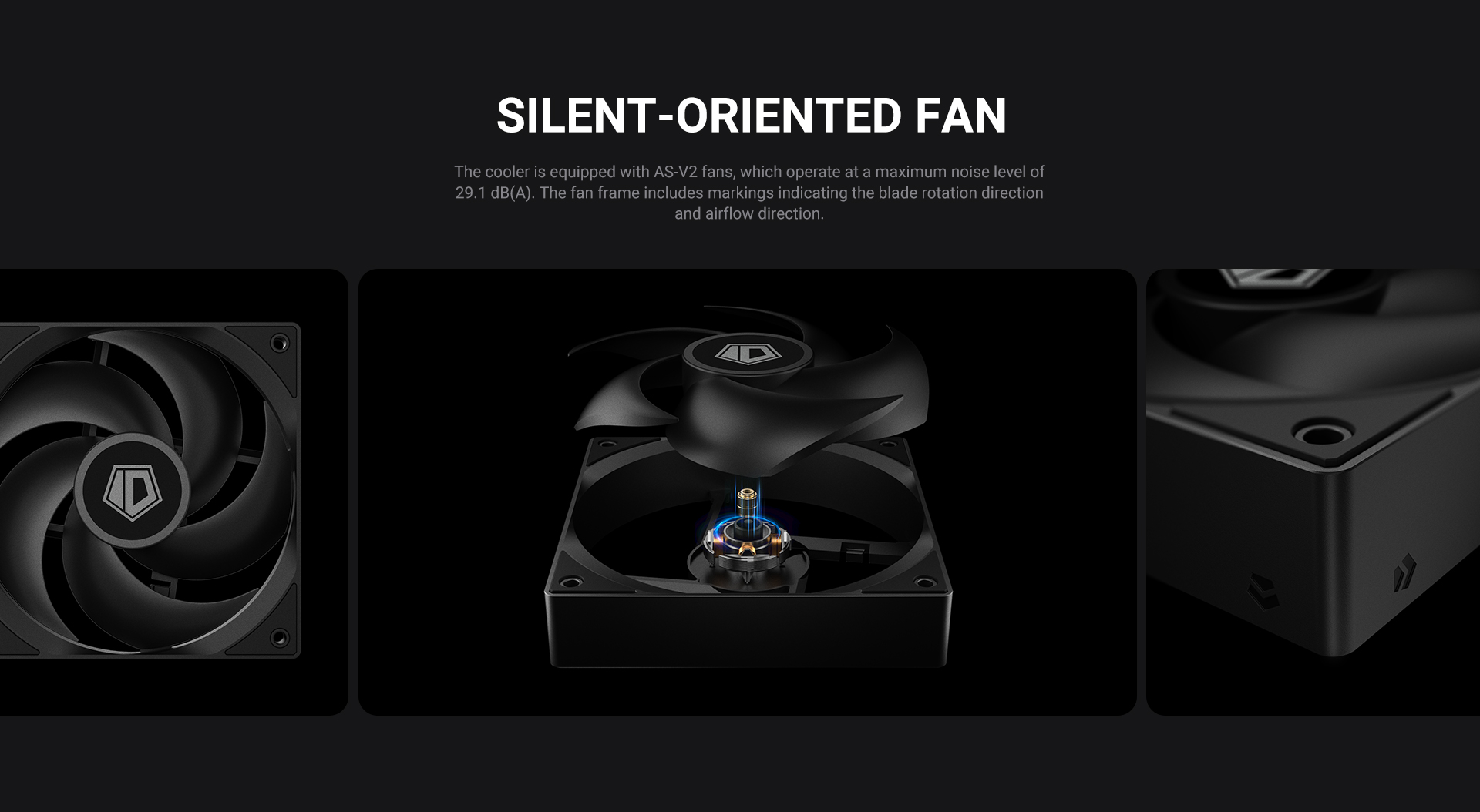

Noise |
29.1dB(A) Max. |
|
Rated Voltage |
12VDC (4-pin PWM) |
|
Operating Voltage |
10.8 ～ 13.2VDC |
|
Started Voltage |
7VDC |
|
Rated Current |
0.1A |
|
Power Input |
1.2W |
|
Bearing Type |
Hydraulic Bearing |
|
Connector |
4-pin PWM |
|
EAN |
6931393308227 |
