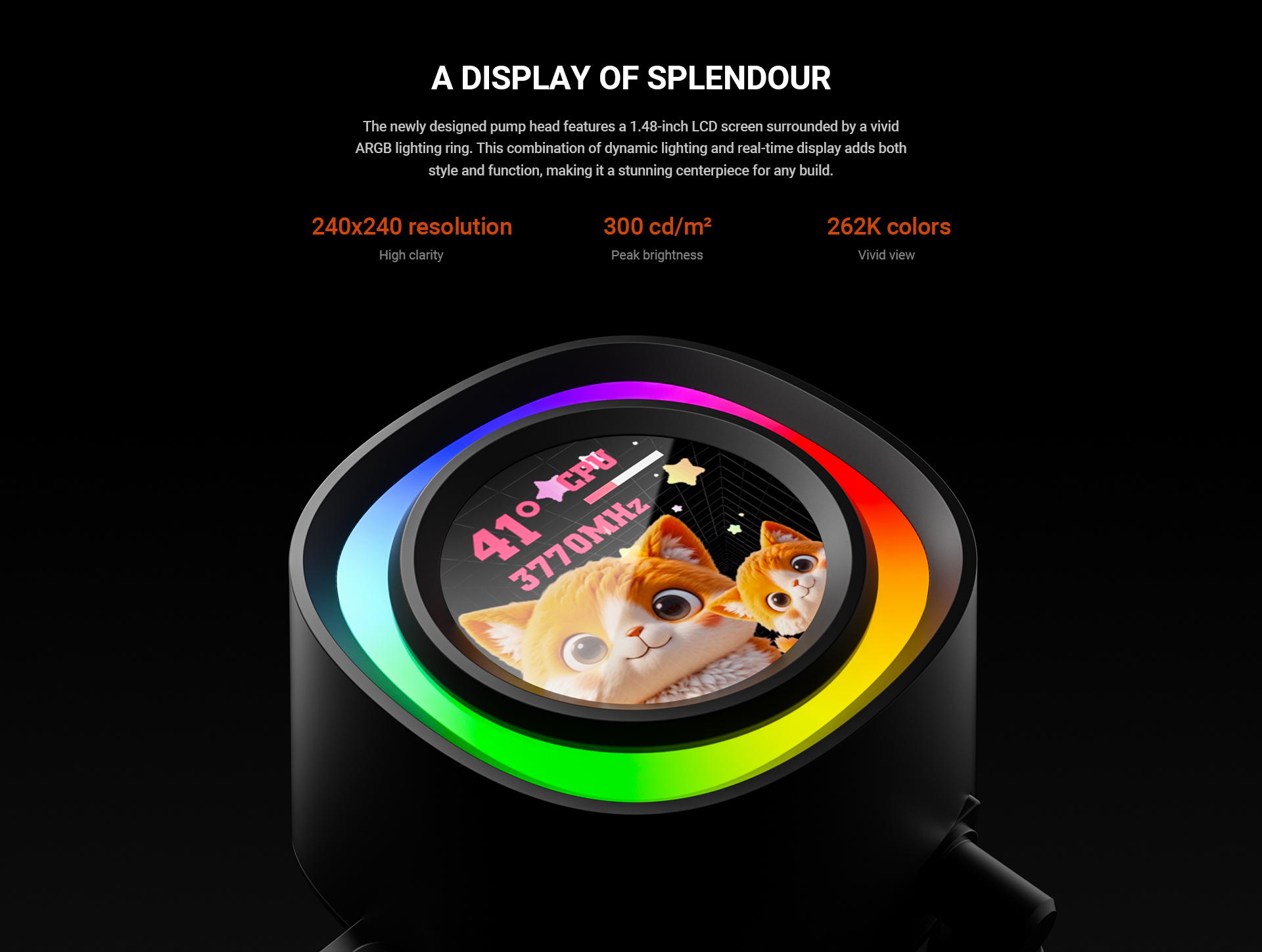

| LCD SCREEN | |
| System Requirement | Windows 10, Windows 11 |
| Dimension | 1.48 inch |
| Resolution | 240x240 px |
| Backlight | 300cd/m² |
| Color | 18-bit, 262K |
|

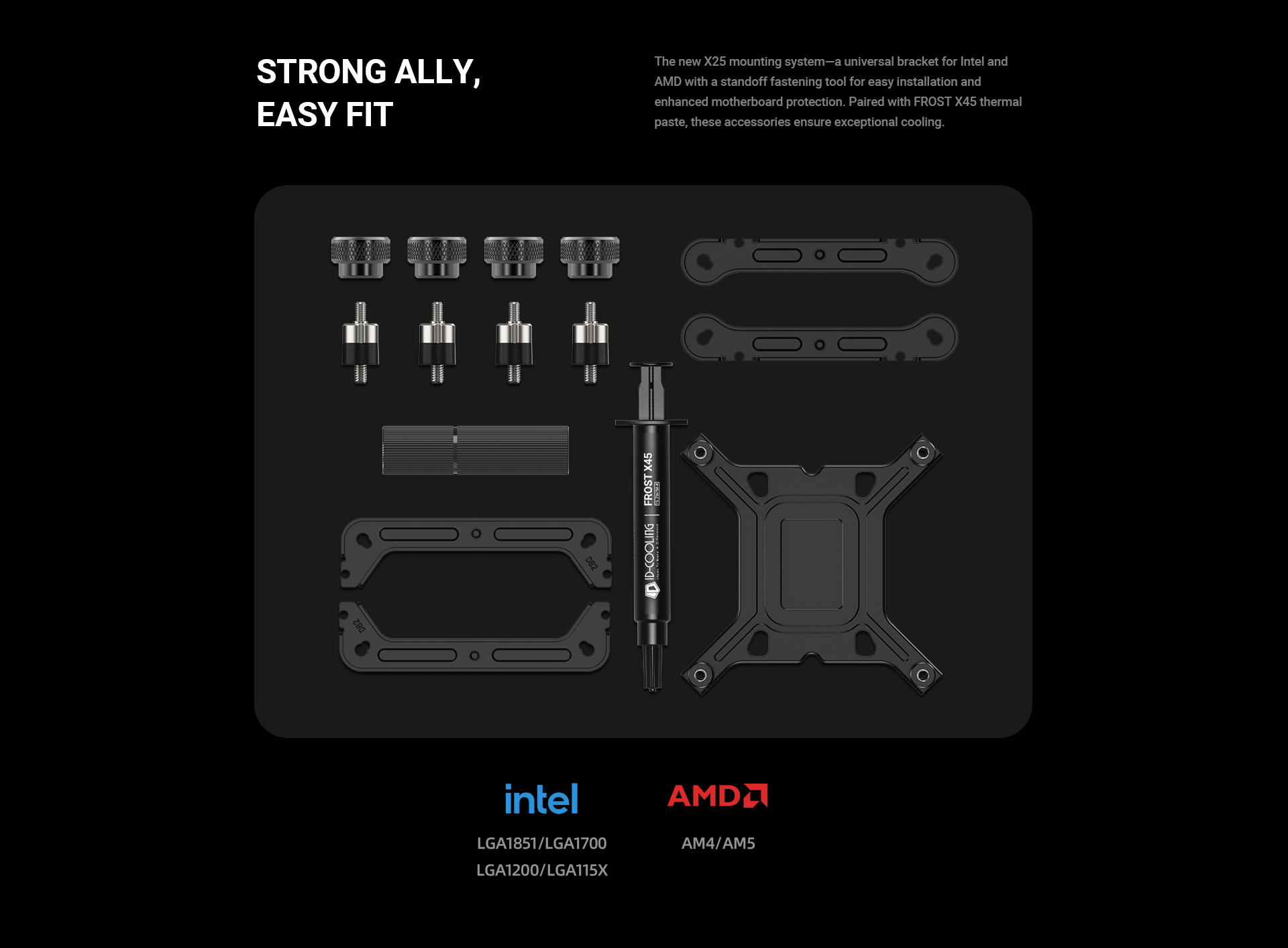

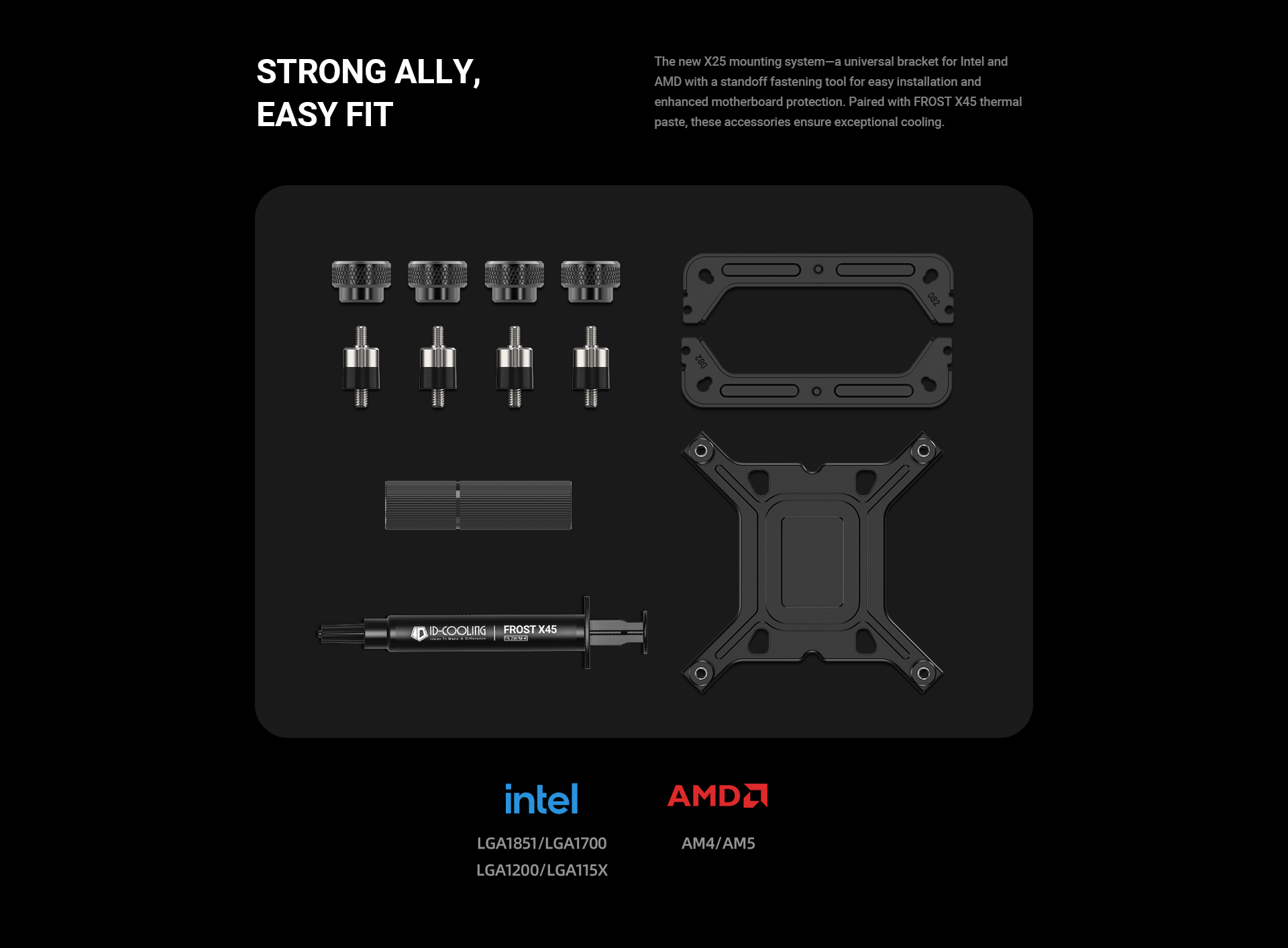

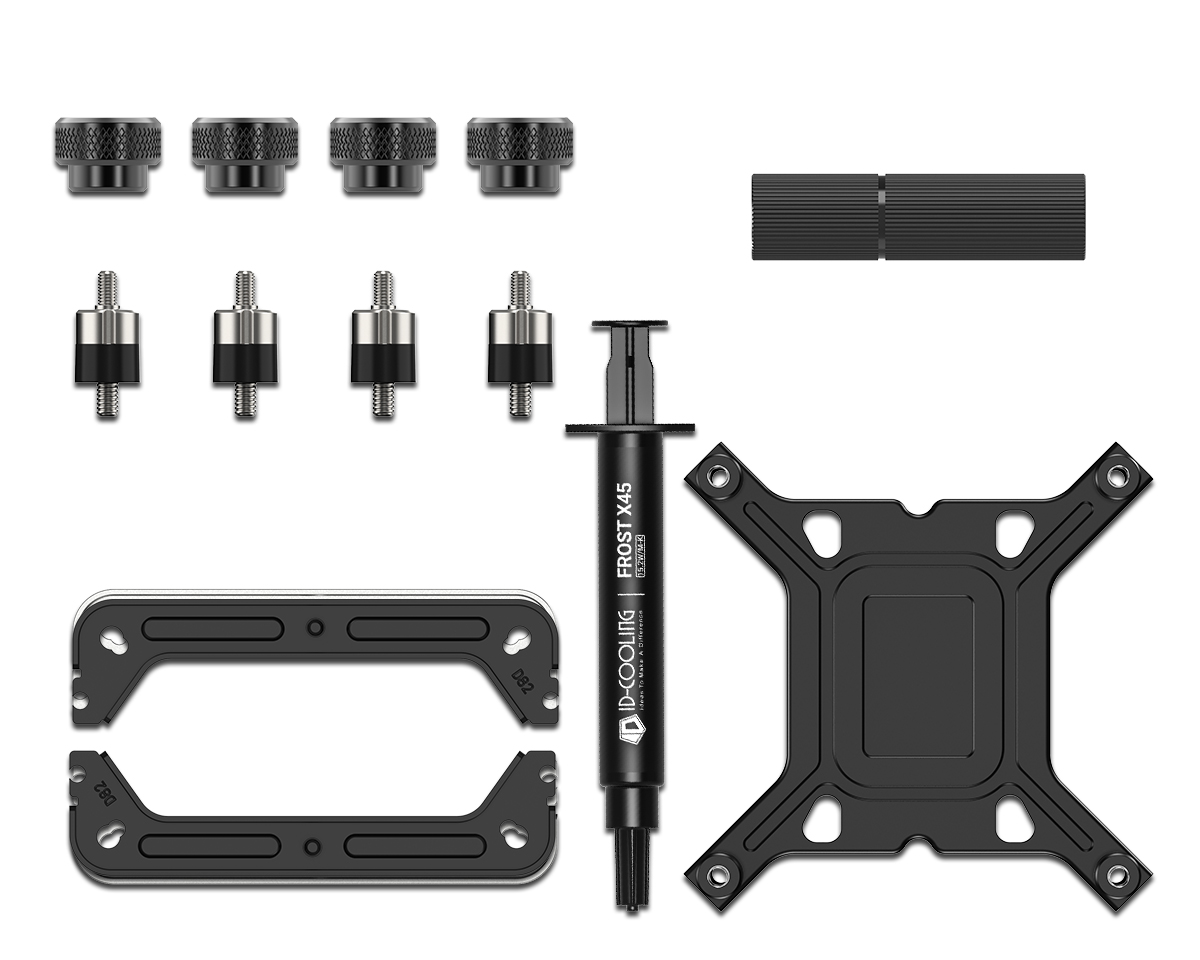

Compatibility |
Intel LGA1851/1700/1200/115X |
|
AMD AM5/AM4 |
|
|
TDP |
350W |
|

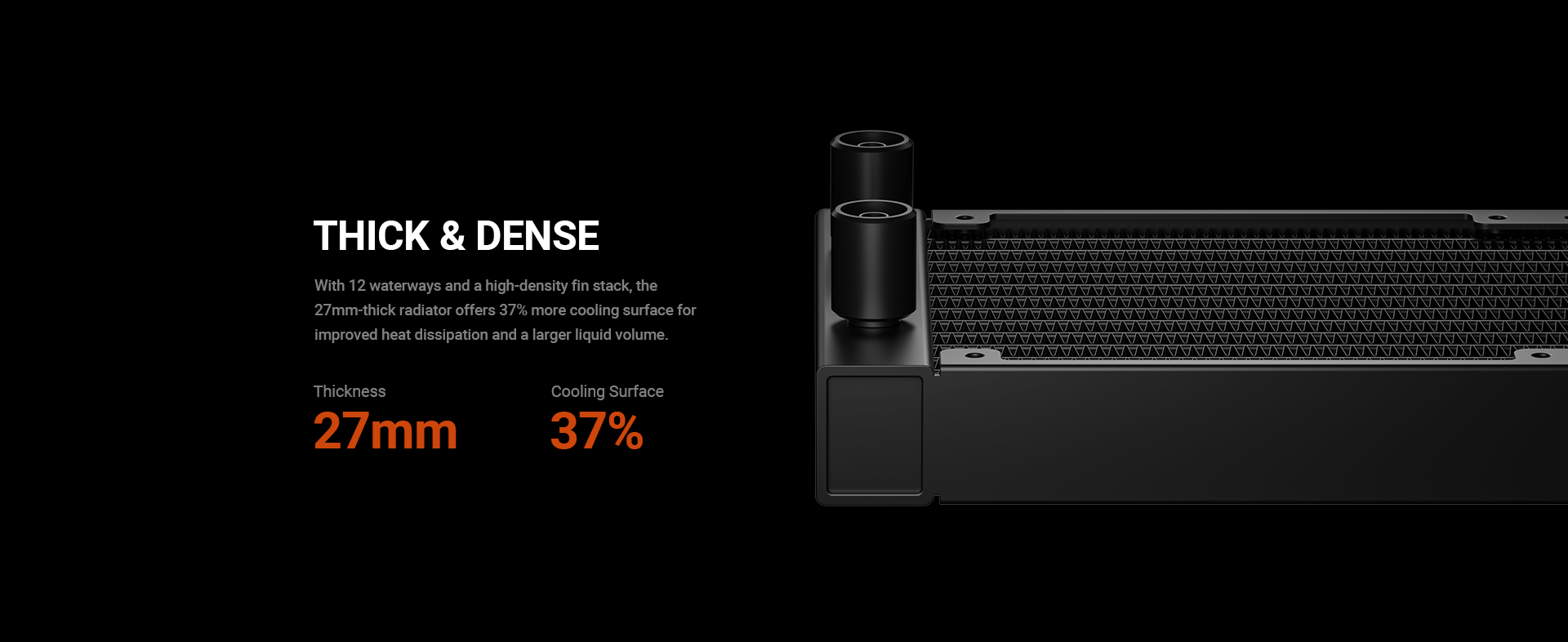

Radiator Dimension |
396×120×27mm |
|
Radiator Material |
Aluminum |
|
Tube Material |
Premium Sleeved Tubing |
|
Tube Length |
420mm |
|
Waterblock Dimension |
73x69x57mm |
|
Cold Plate Material |
Copper |
|

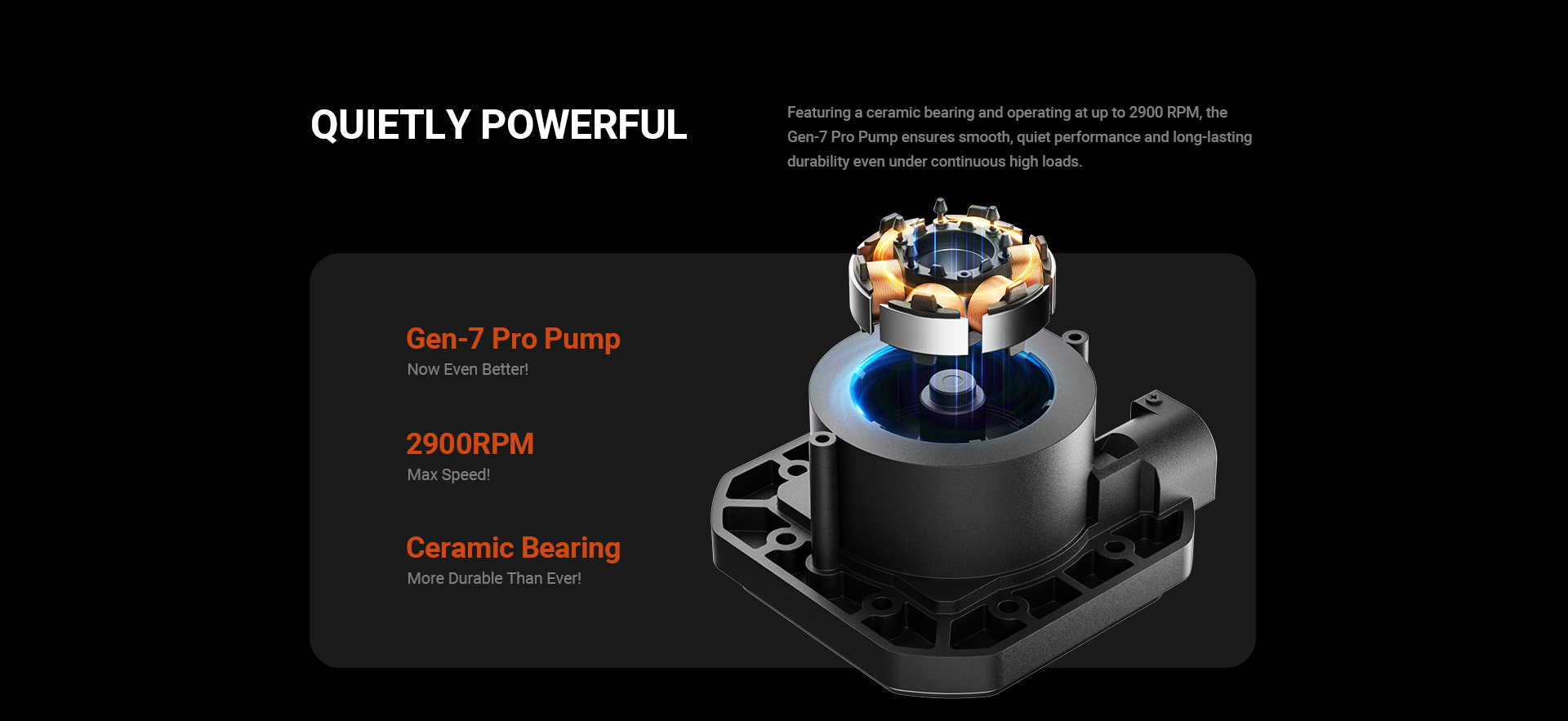

Pump Current |
0.45A Max. |
|
Pump Speed |
2900RPM±10%(PWM) |
|
Pump Bearing |
Ceramic Bearing |
|
Pump Life Expectancy |
50,000 Hrs |
|
Pump Noise Level |
25dB(A) |
|

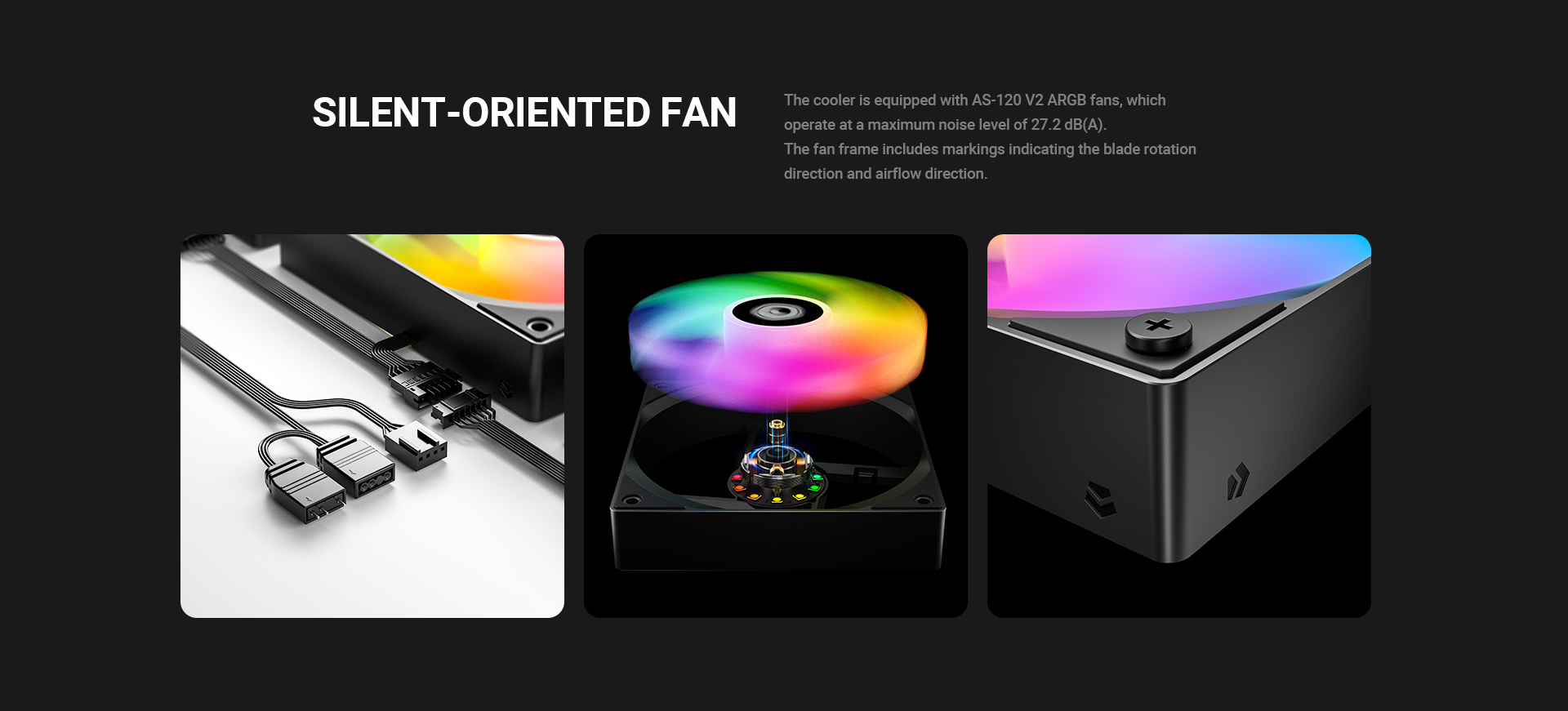

Fan Model |
AS-120-ARGB V2 |
|
Fan Dimension |
120×120×25mm |
|
Included Fans |
3pcs |
|
Fan Speed |
300～2000±10%RPM |
|
Max. Air Flow |
58CFM |
|
Max. Static Pressure |
1.94mmH2O |
|
Noise |
27.2dB(A) Max. |
|
Rated Voltage |
12VDC |
|
Operating Voltage |
10.8～13.2VDC |
|
Started Voltage |
7VDC |
|
Rated Current |
0.15A |
|
Power Input |
1.8W |
|
Bearing Type |
Hydraulic Bearing |
|
Connector |
7-pin (4-pin PWM + 5V 3-pin ARGB) |
Currently no reviews for this product yet.

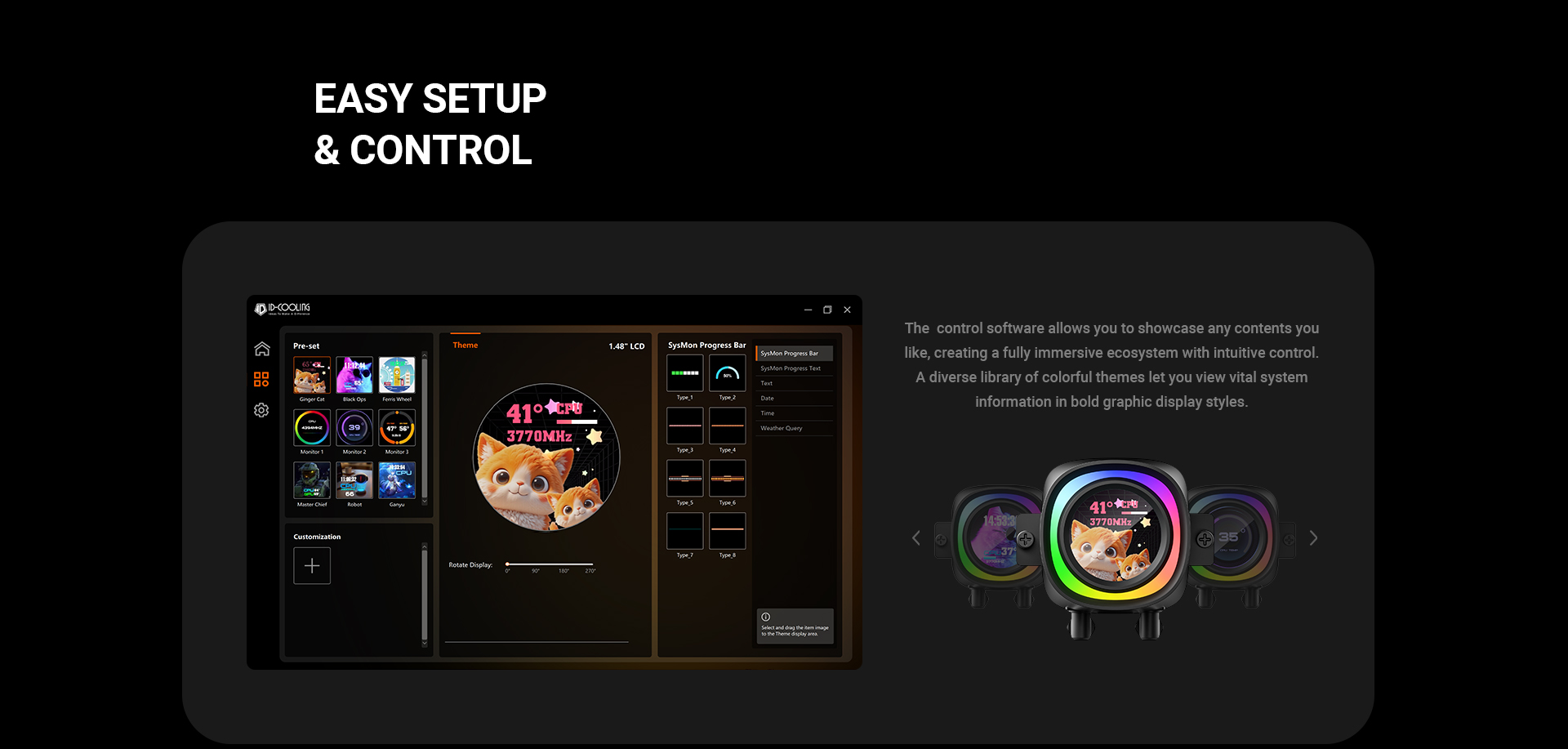

FX LCD Series Software
